PLANTA
Hospital articulated bed with electronic elevation system by compass that provides greater stability and can be fully configurable, being the lightest bed in the market, easy handle...
NewCare hospital bed is a complete electronic articulated bed with a compass elevation system with lineal actuators.
The elevation cart made of high resistance steel with epoxy coating to ensure durability and resistance.
In addition, NewCare bed has a wide accessories and components that allow the compliance all necessities both in regular hospital rooms and intensive care units.
- Linear actuators with IP66 protection.
- 4 section mattress platforms made of removable HPL panels.
- 30 cm bed extensión.
- 4 safety bumpers on each corner.
- Dual auto-regression system that minimizes the pressure on pelvic area and reduce this way the pressure ulcers (16 cm).
- Side rails made of polypropylene with hand grip and gas foldable system.
- X-Ray transparent backrest section.
- Central braking system via steering pedal on foot area.
- Lighter bed, easy driving bed.
- Headboard and footboard easily removable with locking system.

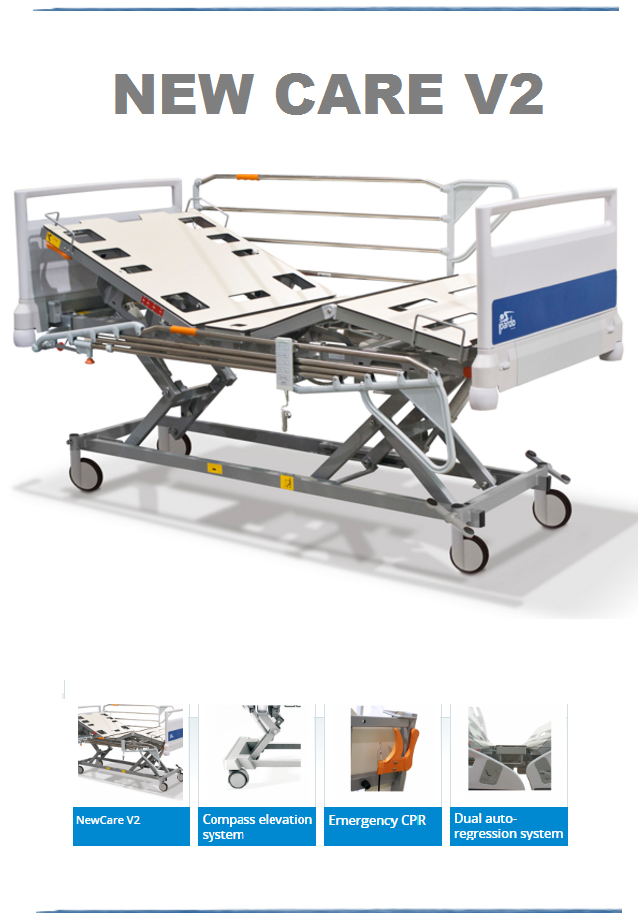

The NewCare V2 hospital bed is a fully electric articulated bed equipped with a compass lift system with linear actuators.
The lift truck is made of high strength steel with epoxy coating that guarantees durability and resistance.
- Linear actuators with protection level IP66.
- Detachable bed in HPL divided into 4 sections.
- 4 cylinders of protection in each corner.
- Double regression system reduces pressure in the pelvic area, reducing the risk of pressure ulcers (16 cm).
- Railings of 4 tubes of stainless steel or painted.
- Light bed, easy to handle the bed.
- Easily removable headboard and footboard.

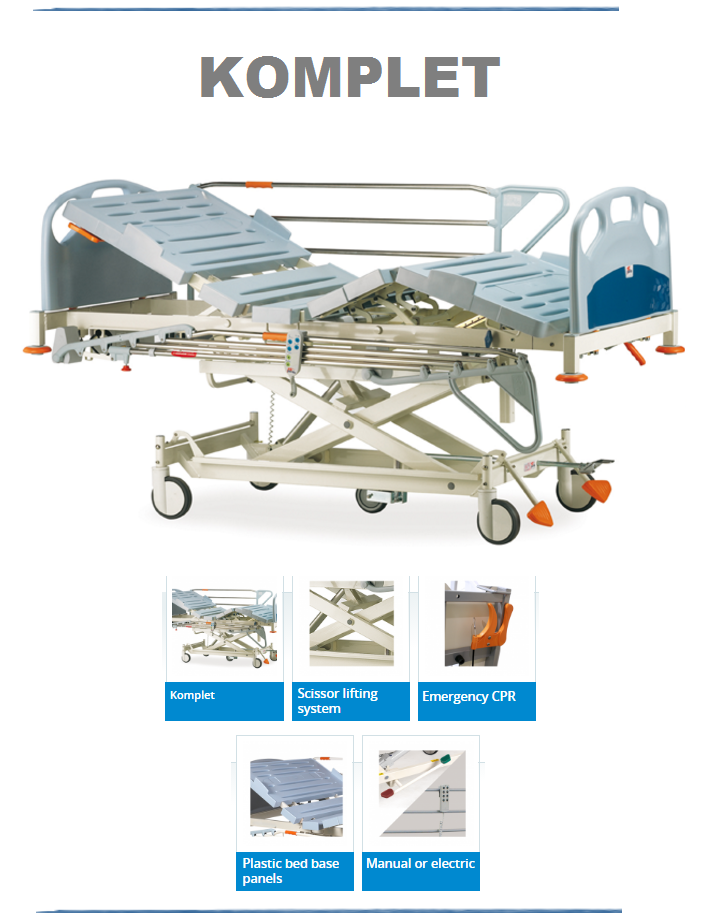

Electric room bed with X elevation system. This model ensures al the robustness performance for high turnover centers with adaptable dimensions.
In the four available models of the Komplet beds (electric basic, cranks basic, electric future and crank future) are specially designed to be used in hospitals, clinics and other similar uses.
Easy handling beds both for medical staff and patient.
- Manual emergency CPR.
- 4 stainless steel tubes removable side rails.
- Raising of the mattress platform modules and bed are done by electrical motors or by cranks and raising pedal.
- Extendable bed frame 300 mm.
- 5 accessories supports.
- The bed base is divided in four articulated panels (trunk, thighs, legs and a fixed module) mechanically or electronically activated, whilst the mattress platform is made up of sex high-resistance, detachable and fireproof thermoplastic modules.
- About positions and movements, it has a leg module universal position by reversible hinges (rastomat).
- Protection bumpers in all corners.
- 150mm wheels with brake pedal with three positions (activation of directional wheel, unlocking wheels and four wheels simultaneous locking).
- Trend / Reverse trend movements in the beds, depending on option.

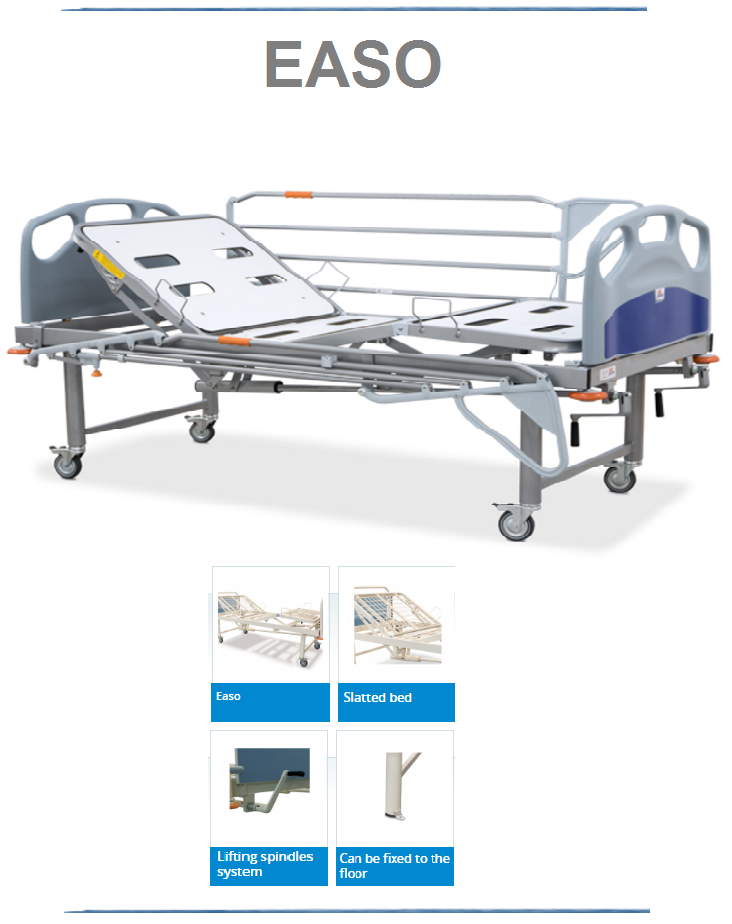

Manual bed for psychiatric care with high resistance steel structure, mattress platform made of electro-welded steel wire with four panels system.
Easo beds are designed to be used in psychiatric institutions or reserved zones in hospitals for this matter.
These beds are robust and durable with high use resistance. They are also easy and quickly handling for the medical staff.
A version of this model is available with the mattress platform divided in two crank articulated sections by cranks.
- Removable headboard and footboard.
- Hydraulic raising chart as an option.
- Side little arcs for mattress retention.
GYNECOLOGY

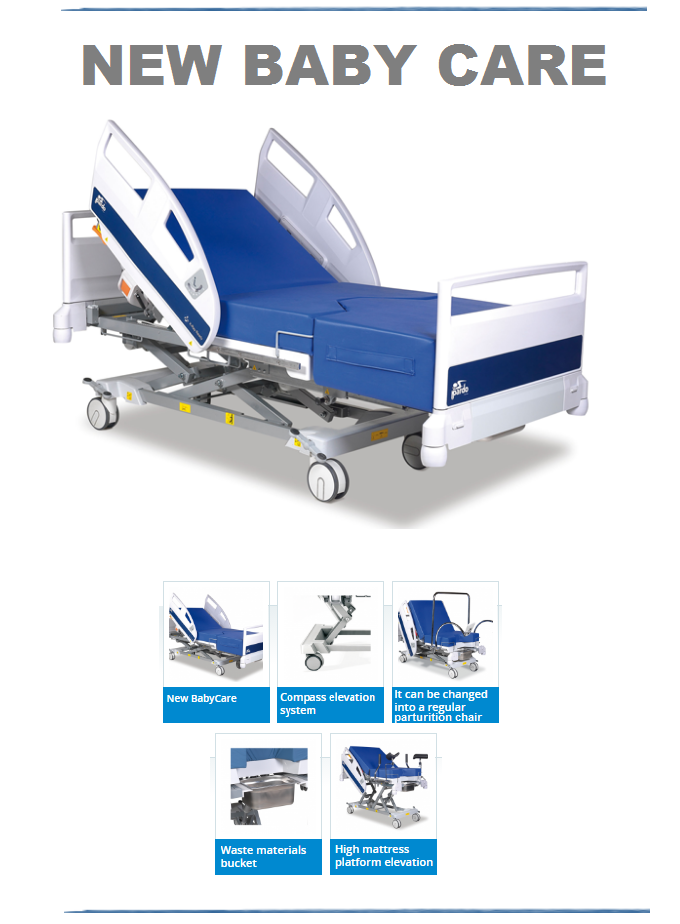

Delivery bed that enables all birth stages on it; dilation, delivery, birth and recovering. Avoiding transfers and inconveniences for both patient and baby with multiple holding.
New BabyCare delivery bed is a complete electronic articulated bed with a compass elevation system with lineal actuators.
The elevation cart made of high resistance steel with epoxy coating to ensure durability and resistance.
In addition, New BabyCare bed has a wide accessories and components that helps and enables the patient and medical staff the delivery process.
- IP66 protection linear actuators.
- Nasogastric and drains supports.
- Electrical TR/R-TR movements.
- Manual and electrical emergency CPR.
- Headboard, footboard and side rails made of high quality and durability polypropylene.
- Back rest split side rails.
- Removable 2-part mattress with sat section.
- Removable mattress platforms made of HPL (High pressure laminated)
- Dual Tread Casters (150 mm) with central braking system.
UCI Y REA
Bed adapted to all ICU and URPA areas requirements with all the functionality, ergonomics, accessibility, handiness and comfortability functions.
HiTech ICU bed has the highest technology to provide the best intensive healthcare for patients.
Hitech 3 rectangular columns elevation system and lateral tilt technology are a security and durability guarantee.
- Manual and electrical CPR emergency.
- Linear actuators with IP66 protection.
- X-Ray capable patient bed section.
- 250Kg maximum security weight.
- HPL mattress platform section.
- 200 mm foot section extension.
- Colors and logos customizable vinyls.
- The bed’s lateral tilt movement allows a better oxygenation, avoid complications and ease the patient daily healthcare.
- Split side rails with a prevent falls system that blocks the tilt bed movement when the side rails are in lowering position.
- The dual auto-regression system of the panels reduces the pressure on the thorax section level, lowering the risk of pressure ulcers. (UPP).
- Prepared for X-ray with an X-ray permeable backrest with integrated X-ray cassette holder.
- Membranes controls integrated in the side rails make easy the beds positioning both for patient and nurse.
- In-build weighing system integrated on the side rails allows the storage of weight data and monitoring the patient’s condition.
Floor bed with guided columns elevation system. Full configurable bed and open downside area to easy in bed patient X-ray due to the X-ray permeable backrest section.
The backrest mattress platform is X-ray transparent with the option to include an X-ray cassette holder.
The use of columns also reduces the possibilities of infections because of the beds easy cleaning as the number of structure pieces has been reduced.
The TechnoPlus bed has the option to integrate a weighing system to facilitate the monitoring and control of the patient’s condition.
- Linear actuators with protection level IP66.
- Detachable bed in HPL divided into 4 sections.
- Extensibility of bed in 30 cm.
- 4 cylinders of protection in each corner.
- Railings made of polypropylene with grip zone and folded system with gas piston.
- Double regression system that reduces pressure in the pelvic area by reducing the risk of pressure ulcers.
- It has the option of incorporating a battery to continue operating the bed in times of power failures.
- Centralized brake system by means of a bar located in the foot section.
- Easily removable head and footboard with locking system.
CAMILLAS DE TRASLADO

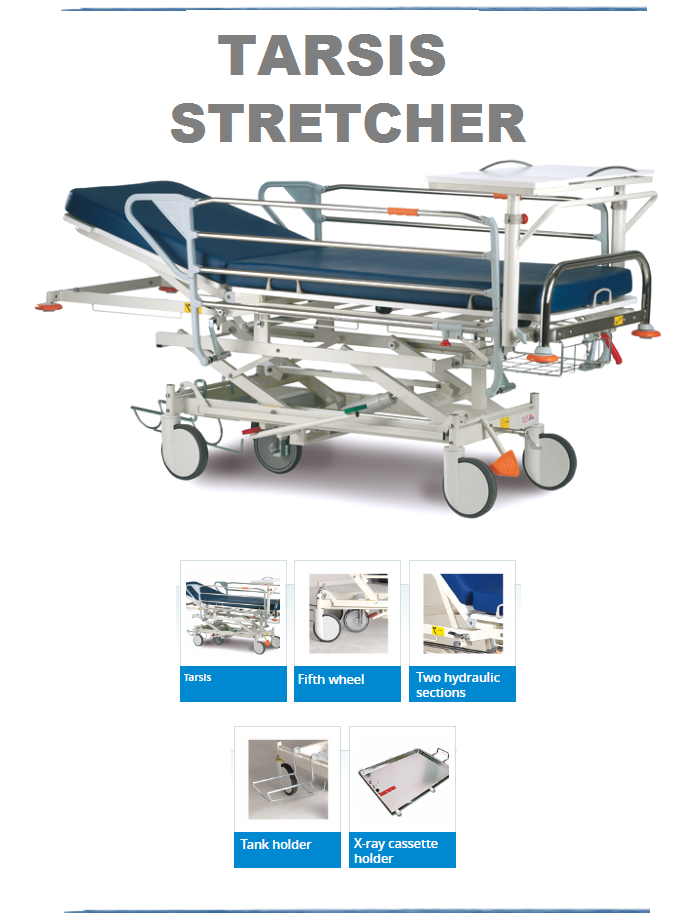

Stretcher with two hydraulic articulated sections. It includes a complete accessories kit to make it versatile in any hospital area.
Tarsis stretcher offers a great versatility, easy and quick handling. The raising and lowering can be smoothly made by the hydraulic system with minimum handling effort.
The height levels are 680mm and 1060mm to facilitate the hospitals staff assistance labor.
Other important characteristics is that ensure the minimum space between the stretcher and other surfaces due to the variety of positions and the scamping rails makes the patient transfers easy, comfortable and quick.
- Manually Trend / Antitrend.
- Optional multiple use table.
- The mattress platform module articulates by a gas shock absorber.
- Multiple support for drainage bags and nasogastric tubes.
